Why Insulated Pergola and Patio Roofs Need Purple V90-Rated Cable

Standard white TPS electrical cable degrades over time inside an insulated pergola or patio roof panel — purple, non-migratory, V90-rated cable is the correct choice instead. Saunders Electrical Group (Contractor Licence 344815C) uses correctly specified cable on every insulated roof installation across the Hills District and Hawkesbury region, because standard cable inside these panels creates a genuine, documented fire and shock hazard over time.

The Two Hazards Standard Cable Can’t Handle Inside Insulated Panels

Insulated pergola and patio roof panels — the sandwich-style panels with a polystyrene (EPS) foam core between two metal skins — create two conditions that standard white TPS cable was never designed for:

1. Chemical Reaction with the Foam Core

Standard white electrical cable contains plasticisers — chemical compounds that keep the outer sheath flexible. Over time, these plasticisers chemically react with the polystyrene foam core inside an insulated roof panel. The reaction causes the white cable sheath to degrade, turn brittle, and eventually crack open — exposing live conductors inside a roof cavity most homeowners will never inspect. This isn’t a theoretical risk; it’s a slow-moving material failure that can take months or years to show, which is exactly why it gets missed.

2. Heat Buildup Under an Australian Roof

An insulated metal patio or pergola roof traps significant heat under direct Australian sun — well beyond what standard 75°C-rated cable is built to handle long-term. Purple non-migratory cable carries a 90°C thermal rating (V90), giving it the heat resilience to handle sustained high temperatures inside an insulated roof cavity without breaking down.

What Purple V90 Non-Migratory Cable Actually Is

Purple V90-rated TPS cable is a specialised cable compound engineered specifically to resist migration into polystyrene foam. It’s manufactured to AS/NZS 5000.2 (the Australian/New Zealand standard governing TPS cable construction) with V90 insulation rated to AS/NZS 3808, giving it the 90°C thermal rating needed inside an insulated roof cavity. Unlike standard white cable, it won’t react with the EPS core of an insulated panel.

Worth being precise here: for a standard fixed domestic installation like a pergola, AS/NZS 3000 doesn’t specifically mandate non-migratory cable in polystyrene or polyurethane panelling — that requirement is set out explicitly for connectable installations (caravans, transportable buildings) under AS/NZS 3001.2:2022, Clause 3.7.4.2. For fixed domestic wiring, the Electrical Contractors’ Association (ECA) has issued technical guidance recommending non-migratory cable as best practice in these panels, given the documented long-term degradation risk from standard cable. On a job like this, using purple V90 cable isn’t about ticking a mandatory compliance box — it’s a trade judgement call based on how the cable will actually perform in that roof cavity for the next 15+ years.

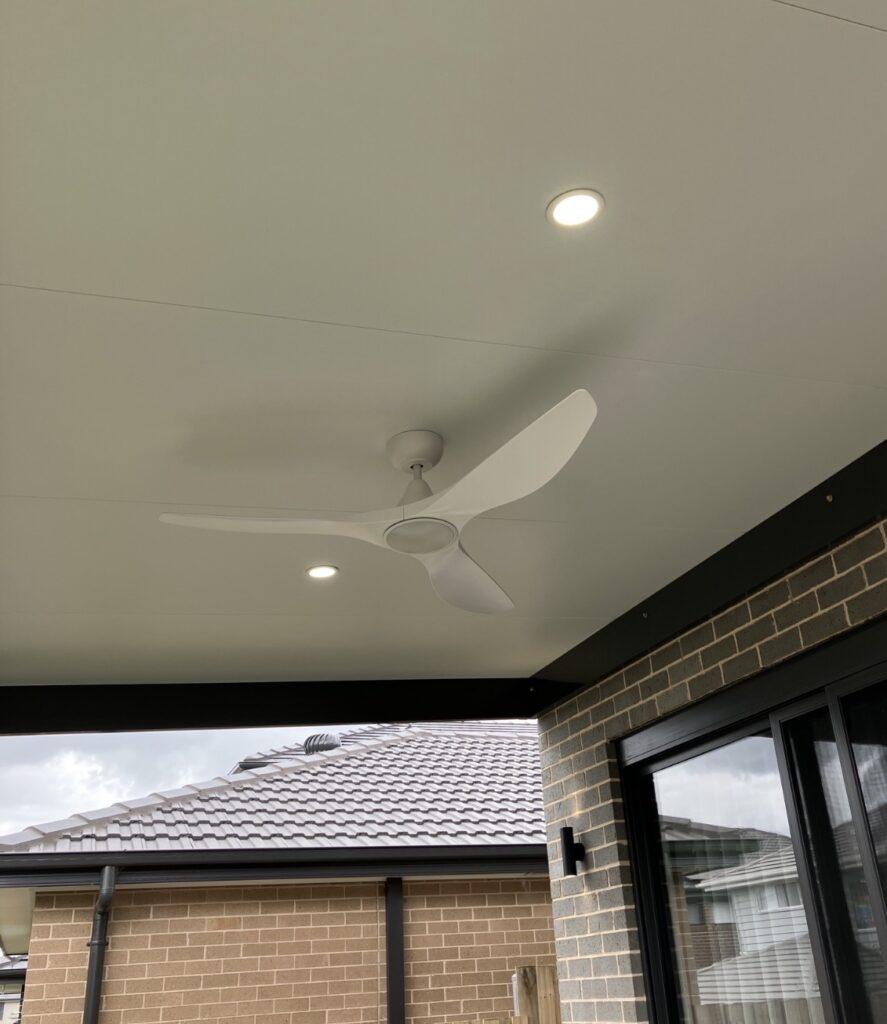

Real Job: Ceiling Fan and Downlight Installation on an Insulated Pergola — Rouse Hill

Saunders Electrical Group recently completed an electrical installation on a new insulated pergola in Rouse Hill, NSW, supplying and installing:

• 1 x Eglo Surf 52-inch DC ceiling fan installation with integrated LED light
• 2 x Eglo LED downlights

Because the pergola roof was insulated panel construction, all cabling run through the roof cavity was purple V90 non-migratory TPS cable — the correct rating for this installation type, rather than the standard white cable often used by installers unfamiliar with insulated panel requirements.

Frequently Asked Questions

Does an insulated pergola need special electrical cable?

Yes. Insulated pergola and patio roof panels require purple, non-migratory, V90-rated cable rather than standard white TPS cable, because standard cable can chemically react with the polystyrene foam core and degrade over time.

What is purple V90 cable used for?

Purple V90 cable is used inside insulated roof panels, such as pergolas and patio roofs, where its non-migratory compound resists reacting with polystyrene foam and its 90°C heat rating withstands the higher trapped temperatures inside an insulated roof cavity.

Can standard TPS cable be used on insulated patio roofs?

No. Standard white TPS cable contains plasticisers that react with the polystyrene foam core in insulated patio panels, causing the cable sheath to degrade, become brittle, and crack over time — creating a fire and shock hazard.

Why does cable in insulated pergola roofs turn brittle over time?

The plasticisers in standard cable chemically migrate into the polystyrene foam core of insulated panels. This reaction breaks down the cable’s outer sheath, causing it to lose flexibility, become brittle, and eventually crack open.

Is non-migratory cable a legal requirement for pergolas in Australia?

Not strictly, for a fixed domestic installation. AS/NZS 3000 does not specifically mandate non-migratory cable in polystyrene or polyurethane panelling for fixed wiring. Non-migratory cable is a hard requirement only for connectable installations such as caravans and transportable buildings, under AS/NZS 3001.2:2022, Clause 3.7.4.2. For a pergola or patio, using it is best-practice trade judgement rather than a legal mandate — but it is the option that avoids a documented long-term degradation risk.

Standards and References

• Purple non-migratory V90 cable is manufactured to AS/NZS 5000.2 (TPS cable construction) with V90 insulation to AS/NZS 3808.
• Non-migratory cable is explicitly required for connectable installations under AS/NZS 3001.2:2022, Clause 3.7.4.2.
• The Electrical Contractors’ Association (ECA) has published technical guidance recommending non-migratory cable in polystyrene and polyurethane panelling as best practice for fixed domestic and commercial installations.
